NANOCUT: High Therm Indane Cutting Gas

Conventionally metal cutting application involves usage of Oxy Acetylene mixture which has higher degree of hazard potential due to high shock sensitivity and very large flammability range. The method of using oxy-acetylene gas for metal cutting applications is fraught with potential hazard of explosion during usage as well as storage and hence discouraged worldwide despite of its high flame temperature and calorific value. The issue of high cost and hazards associated with acetylene calls for an alternative which is safer, cheaper, and easily available. This has prompted the usage of Liquefied Petroleum Gases (LPG) for metal cutting applications. However, the lower flame temperature of LPG has been an adverse aspect, which limits the use of LPG in high temperature applications such as metal cutting.

IndianOil, the top energy provider in India, has been working on the ways and means of enhancing the performance of LPG for high flame temperature applications. Our new product "Indane NANOCUT" is additized LPG for high temperature Industrial applications which is based on a proprietary additive formulation innovated at Indian Oil R&D Centre Faridabad. The indigenously developed additive enhances the efficiency of LPG as cutting gas in terms of high flame temperature, heat through put, low oxygen consumption, reduced cylinder inventory, thereby leading to better economy to the user of "Indane NANOCUT".

Indane Nanocut

Indane Nanocut, an innovative product developed by IndianOil R&D, has bagged yet another prestigious innovation award today under the category of Breakthrough Product – Innovation in R&D and AI in a nationwide Innovation Contest held by All India Management Association (AIMA). Indane Nanocut (an LPG variant enriched with proprietary additive formulation) is a safe and efficient alternative to the hazardous oxy-acetylene gas used for metal-cutting and other high-temperature applications.

Product attributes

Indane NANOCUT - Potential Applications

Highly recommended for sectors which typically involve metal cutting, heating, straightening, hardening, welding, soldering, brazing, coating etc. and who are currently using either oxy-acetylene, LPG. Indane Nanocut will provide a thermal temperature much higher than that of LPG or other commercially available LPG based products. Evolved after extensive field trials and testing by various laboratories, establishing superior performance.

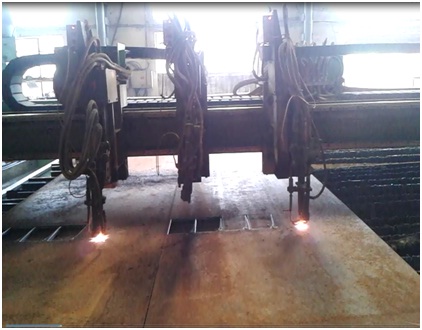

Cutting of carbon steel, Low, Medium & High alloy steel plates / Ingots of any desired thickness

Flame hardening applications

Other industrial heating applications

Typical savings potential from usage of Indane NANOCUT
Plate thickness % Reduction in consumption of cutting gas (vis-a-vis commercial LPG products)
10mm – 25mm 15%
> 25mm 30%

Particulars Propane n- Butane INDANE LPG Acetylene INDANE NANOCUT
Chemical Formulae C3H8 C4H10 n-Butane & Propane Mix C2H2 AdditisedButane - Propane Mix
Max. Vapour Pressure in kPa at 40oC 1550 520 1050 6000 1050
Liquid Density at 1.013 bar & at Boiling Point (kg m-3) 580.88 601.26 560.54 378.20 560.54
Specific Gravity of Gaseous Phase air=1 1.55 2.08 1.75 0.91 1.75
Boiling Points at 1.013 bar ( oC) -42.11 -0.49 -2 -84.7 -2
Liquid /G as equivalent at 1.013 bar and at 15oC (vo l/ vol) 306 236 270 663 270
Auto Ignition Temperature (oC/oF) 480/ 896 405/761 488/910 325/617 488/910
Ideal Combustion Ratio (Oxygen to gas) 4.3:1 5.1:1 4.7:1 1.2:1 4.7:1
Ideal Combustion Ratio (Air to Gas) 20.5:1 24.3:1 22.4:1 5.7:1 22.4:1
Gross Calorific Value (MJ m -3) 101 133 117 59 117
Adiabatic Inner Flame Temperature in Oxygen (oC)* 2588 2596 2594 3200 3100
Inner Flame Temperature in Air(oC)* 2034 2039 2037 2500 2650
Max. Inner Flame Temperature(oC)# - - 1934 - >>2300
Backfire Tendency Low Low Low High Low
Shock Sensitivity Stable Stable Stable Unstable Stable
Toxicity Low Low Low Low Low
Flammability Limits in Air (%) 2.20-9.50 1.50-8.50 1.80-9.50 2.40-83.00 1.80-9.50
Flammability Limits in Oxygen (%) 2.40-57.0 1.60-51.0 2.40-57.0 3.0-93.0 2.40-57.0

*Calculated values #Experimental values using thermocouple

Handling & Protection:
Personal protective equipment (PPE) is critical in a fabricating shop involving in metal cutting operations for several reasons. The Occupational Safety is of immense importance for the industrial sector. Hazards exist in every workplace in many different forms and controlling a hazard at its source is the best way to protect employees. Employers must provide personal protective equipment (PPE) to their employees and ensure its use. Examples of PPE but not limited to items as gloves, foot and eye protection, protective hearing devices (earplugs, muffs) hard hats, and full body suits.
